Spiropalm 6MWT is a new device that incorporates a spirometer with a pulse oximeter and ventilation monitor.
During a 6 Minute Walk Test, this compact and lightweight combination can be easily worn by a patient on a harness or a belt to collect real-time data. The resulting report provides clinicians with a cohesive and comprehensive means of evaluating 6-MWT results.
Features include:
-
Continuous measurement of SpO2 & HR throughout the walking/exercise period makes the clinician aware of desaturation that may have occured during the 6 minute walk but which was reversed by the end of the test
-
Measurement of Minute Ventilation (VE) and Breathing Pattern during walking
-
Measurement of Breathing Reserve (BR) and evaluation of Ventilatory Limitation
-
Evaluation of Dynamic Hyperinflation with Inspiratory Capacity (IC) measurement
-
Complete spirometry including FVC, Pre/Post FVC comparison, Bronchial challenge test, MVV and SVC
-
Internal memory for storing hundreds of tests
-
Spiropalm Flash Drive (included) provides an alternative for storing reports in pdf format
- Reports are generated by connecting directly to a standard USB printer
- Data Management Software (included) for transferring patient files to a computer and for interfacing with other programs
Measured Parameters
| 6MWT: |
Duration, Distance, Borg Dyspnea (Baseline, Final), Borg Fatigue (Baseline, Final), 6MWW, 6MWD (Pred., Min.), SpO2 (Baseline, Min., Avg., Final),
T (ΔSpO2≥4%), T (≤88%), HR (Baseline, Max., Final), FEV1 (Baseline, Pred.), VE (Baseline, Peak, Final),
BR (Baseline, Min., Final), RF (Baseline, Peak, Final), IC (Baseline, Final)
|
| Spirometry: |
FVC • IVC • VC • MVV • VT • FEV1 • FEV6 • FEV1/FEV6 • FEV6/FVC • PEF • PIF • FEV1/FVC • FEF 25-75 • FEV1/VC% • %FEV1 • MEF25% • MEF50% • MEF75% • FET 100% • Lung Age • ERV • IRV • VE • Rf • ti • te • ti/t.tot • VT/ti • Best FVC • Best FEV1 • IC • SpO2 • HR |
Hardware Features
| Size: |
18.5 x 8.6 x 3.1 cm
(7.25 X 3.25 X 1.75") |
| Weight: |
390
g ~ 13.5 oz |
| Power: |
Rechargeable battery, Li-Ion 1800 mAh |
| Display: |
LCD 320x240 pixel, Monochrome with amber backlight |
| Internal Memory: |
Stores thousands of reports |
| Recording time: |
Adjustable - from 2 to 30 minutes |
Sensor
Reusable bidirectional
digital turbine can be mounted on the face mask or on a lightweight handset. The sensor is easily cleaned with a bleach solution or other disinfecting agent. During spirometry, the operator can use their choice of anti bacterial/viral filter or mouthpiece.
| Range
(volume): |
12
liters |
| Range
(flow): |
0.08 - 20
l/s |
| Accuracy
of measurement: |
±
2% |
| Flow
Accuracy: |
±
5% or < 200 ml/s |
| Flow
Resistance: |
<
0.6 cmH2O l/s at 14 l/s |
Additional Spirometry Features:
Real-time Graphs - Simultaneous Flow/Volume loop and time/Volume graph in real-time
Bronchial Challenge Testing - Methacholine, cold air, or exercise can be used to induce bronchospasm and to identify and treat asthma.
Pediatric Incentive
- "Bubbles" encourages patients to perform
tests
properly so you have optimal results quickly and easily.
Quality
Control Messages - Software-driven messages help the
technician recognize testing errors and validate a maneuver's technical quality.
Alphanumeric Keyboard - Reports can
be personalized with patient data, notes, and a header.
Choice of Prediction Standards - Spiropalm is programmed with a choice of predicted normals, including NHANESIII, Knudson, ITS, Crapo, and other
predicted sets.
Economical - Cost effective way to perform diagnostic spirometry using your choice of mouthpiece or bacterial filter.
Choice of Languages - Spiropalm is available in English, Spanish, French, Portugese, Italian, German, Dutch, Chinese (Mandarin), Korean, and Turkish.
Accurate
- Spiropalm meets or
exceeds ATS standards for accuracy. Its unique sensor design is
not affected by environmental changes. The built-in temperature sensor and
the ability to make BTPS corrections ensure that measurements are exact
for a wide range of flows, with low resistance.
|
Spiropalm 6MWT
integrates
Heart Rate and SpO2 monitoring with
the ability to measure ventilation during exercise.
Compact and lightweight

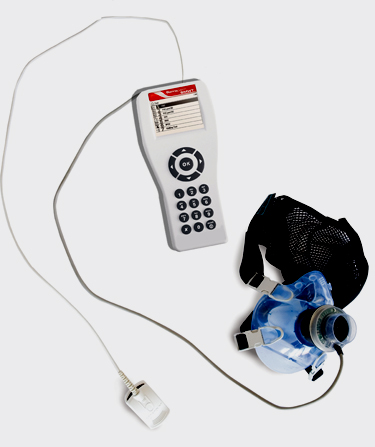

Spiropalm 6MWT integrates a flow meter seated in a silicone face mask with a Nonin pulse oximeter. A comfortable headgear and harness allow patients to wear the device during walking.
Handheld Spirometry
Spiropalm 6MWT is also a diagnostic spirometer
for measuring FVC, Pre-Post
FVC, MVV,
SVC and
broncho-challenge routines.
|
